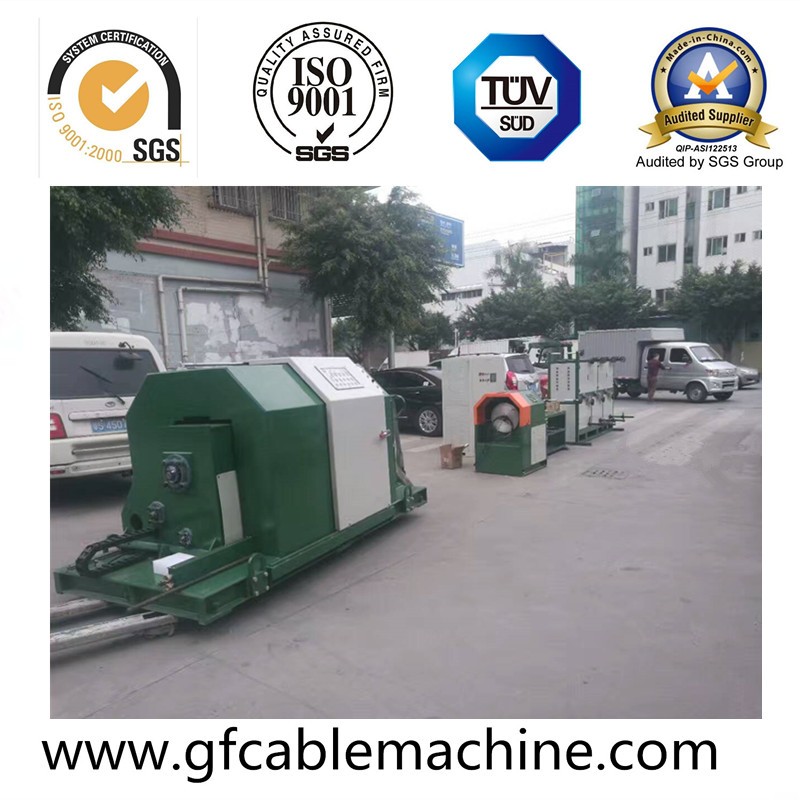

Cantilever Type Core Wire Cable Single Stranding Machine

Cantilever Type Core Wire Cable Single Stranding Machine

Cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.

Cantilever Type Core Wire Cable Single Stranding Machine

1.Application:
Cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.

2.Technical parameter:

cantilever type cable single stranding machine
technical parameters
machine type	GF-630	GF-800	GF-1000	GF-1250
single wire diameter	ø0.6-3.0mm	ø0.6-4.0mm	ø1.0-5.0mm	ø3.0-10.0mm
max stranding wire diameter	ø15mm	ø20mm	ø25mm	ø30mm
stranding pitch	10-180mm	20-250mm	30-350mm	30-400mm
pay-off reel specification	ø400-500mm	ø400-630mm
take-off reel specification	ø630	ø800	ø1000	ø1250
rotation speed	1000rpm/min	800rpm/min	600rpm/min	550rpm/min
shaft lifting	electric hydraulic lifting
take-up tension	pneumatic tension(adjustable)
stranding direction	SZ left and right free option
traverse type	take-up by self-running of wire drum,reciprocal traverse
wrapping way	center wind-wrapping or side straight-wrapping
